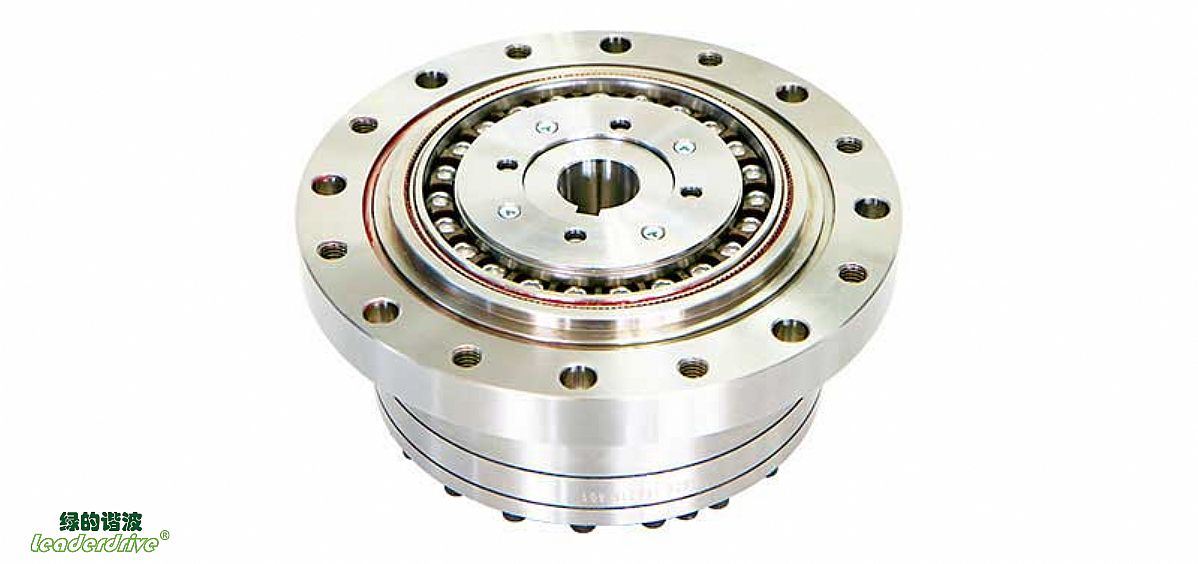

LCS Standard Cup-Shaped Flexspline Strain Wave Gear

Ref: LCS

Standard cup-shaped flexspline strain wave gears are composed of four parts: a flexspline, a rigid circular spline, a wave generator, and roller bearings. Generally, the circular spline end is fixed, and the flexspline end is the output connecting with the motor. They are used as harmonic speed reducers in many mechanisms that perform rapid, precision motions.

The LCS cup-shaped flexspline strain wave gear is highly efficient and cost-effective. The simple structure with high rigidity and low backlash means that it can withstand high torque and obtain excellent positioning accuracy and rotation accuracy.

Leaderdrive is an innovative R & D and manufacturing company specialized in the development of strain wave gears and other gearbox and gearhead solutions. Contact us for more information on these products, including specifications, data, and warranties.

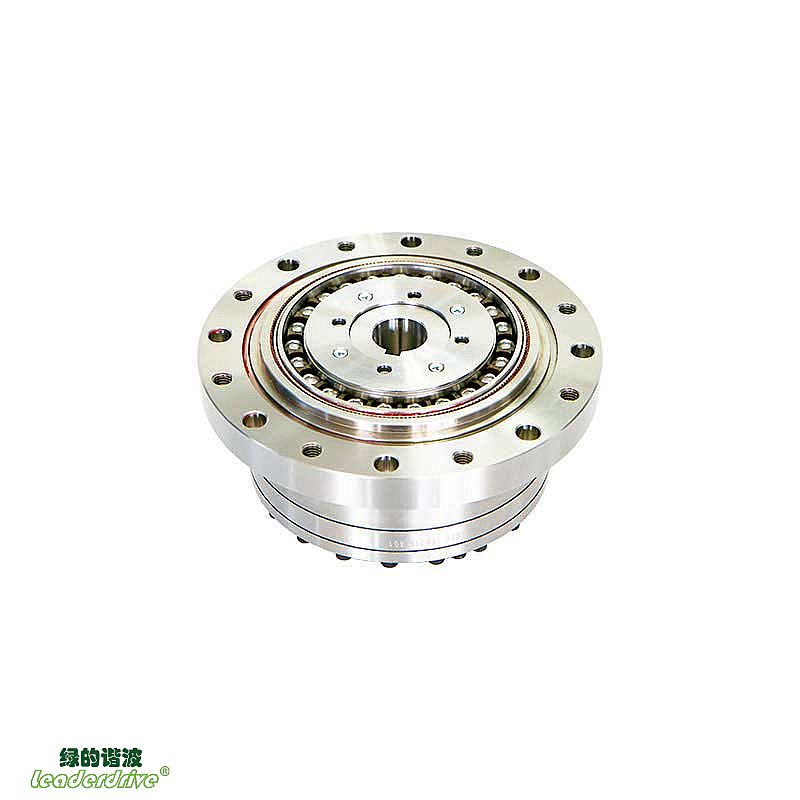

LCS Standard Cup-Shaped Flexspline Strain Wave Gear

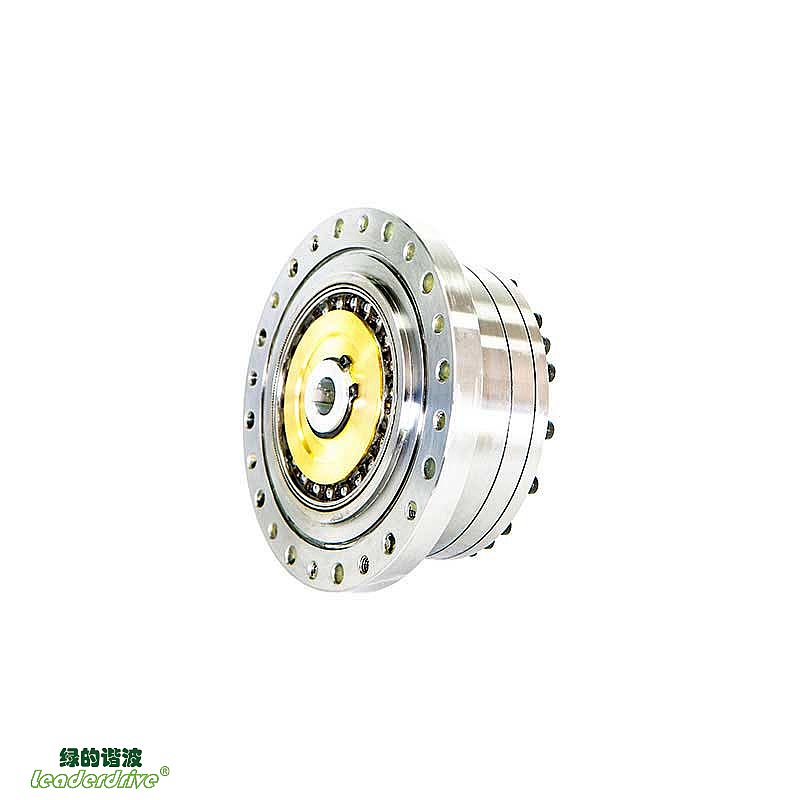

LCS Standard Cup-Shaped Flexspline Strain Wave Gear - LCS

Applications:

Standard cup-shaped flexspline strain wave gears can be widely used in: robotics, humanoid robots, semiconductor manufacturing equipment, laser equipment, printed circuit manufacturing equipment, measurement and analysis test equipment, medical equipment, telescopes, optical testing equipment, metal machine tools, photovoltaic equipment, packaging equipment, aerospace, and other fields.

Models:

The LCS standard cup-shaped flexspline strain wave gear series is divided into two models according to the different connection forms of the input end and the wave generator cam:

LCS-I: The input shaft is directly matched with the wave generator's inner hole and connected by a flat key.

LCS-II: The input shaft is connected to the wave generator's inner hole through an Oldham coupling.

If you want to know more about our products, you can download our Product Introduction Manual and 3D Model here.

LCS-I Series Parameter Table

Item Model No	Reduction Ratio	Rated Torque at 2000r/min Nm	Allowable Peak Torque at Start and Stop Nm	Allowable Average Torque Nm	Allowable Maximun Mementary Torque Nm	Maximun Input Speed r/min	Allowable Average Input Speed r/min	Back Lash Arc sec	Weight Kg	Design Life Hour
14	30 50 80 100	3.8 5.1 7.4 7.4	8.5 17.1 22 26	6.5 6.6 10.5 10.5	16 33 44 51	8000	3500	≤20 ≤20 ≤10 ≤10	0.51	10000 10000 15000 15000
17	30 50 80 100 120	8.4 15.2 21 23 23	15 32 41 51 51	11.5 25 26 37 37	28 66 83 103 82	7000	3500	≤20 ≤20 ≤10 ≤10 ≤10	0.68	10000 10000 15000 15000 15000
20	30 50 80 100 120 160	14 24 32 38 38 38	26 53 70 78 83 87	19 32 45 47 47 47	48 93 121 140 140 140	6000	3500	≤20 ≤20 ≤10 ≤10 ≤10 ≤10	0.98	10000 10000 15000 15000 15000 15000
25	30 50 80 100 120 160	26 37 60 64 64 64	48 93 130 149 159 167	36 52 83 103 103 103	90 177 242 270 289 298	5500	3500	≤20 ≤20 ≤10 ≤10 ≤10 ≤10	1.47	10000 10000 15000 15000 15000 15000
32	30 50 80 100 120 160	51 72 112 130 130 130	95 205 289 316 335 353	71 103 159 205 205 205	190 363 540 615 652 652	4500	3500	≤20 ≤20 ≤10 ≤10 ≤10 ≤10	3.19	10000 10000 15000 15000 15000 15000
40	50 80 100 120 160	130 196 252 279 279	382 493 540 586 615	186 270 353 429 429	652 931 1026 1121 1121	4000	3000	≤20 ≤10 ≤10 ≤10 ≤10	5.0	10000 15000 15000 15000 15000
50*	50 80 100 120 160	233 353 446 503 503	679 894 931 1026 1121	333 493 633 772 801	1358 1767 1957 1957 2327	3000	2500	≤20 ≤10 ≤10 ≤10 ≤10	9.0	10000 15000 15000 15000 15000
58*	80 100 120 160	522 661 708 708	1406 1511 1634 1748	732 1007 1131 1150	2328 3021 3164 3259	3000	2200	≤10 ≤10 ≤10 ≤10	14.8	15000 15000 15000 15000

*Consult factory

LCS-II Series Parameter Table

Item Model No	Reduction Ratio	Rated Torque at 2000r/min Nm	Allowable Peak Torque at Start and Stop Nm	Allowable Average Torque Nm	Allowable Maximun Mementary Torque Nm	Maximun Input Speed r/min	Allowable Average Input Speed r/min	Back Lash Arc sec	Weight Kg	Design Life Hour
14	30 50 80 100	3.8 5.1 7.4 7.4	8.5 17.1 22 26	6.5 6.6 10.5 10.5	16 33 44 51	8000	3500	≤20 ≤20 ≤10 ≤10	0.52	10000 10000 15000 15000
17	30 50 80 100 120	8.4 15.2 21 23 23	15 32 41 51 51	11.5 25 26 37 37	28 66 83 103 82	7000	3500	≤20 ≤20 ≤20 ≤20 ≤20	0.69	10000 10000 15000 15000 15000
20	30 50 80 100 120 160	14 24 32 38 38 38	26 53 70 78 83 87	19 32 45 47 47 47	48 93 121 140 140 140	6000	3500	≤20 ≤20 ≤20 ≤20 ≤20 ≤20	0.99	10000 10000 15000 15000 15000 15000
25	30 50 80 100 120 160	26 37 60 64 64 64	48 93 130 149 159 167	36 52 83 103 103 103	90 177 242 270 289 298	5500	3500	≤20 ≤20 ≤20 ≤20 ≤20 ≤20	1.48	10000 10000 15000 15000 15000 15000
32	30 50 80 100 120 160	51 72 112 130 130 130	95 205 289 316 335 353	71 103 159 205 205 205	190 363 540 615 652 652	4500	3500	≤20 ≤20 ≤20 ≤20 ≤20 ≤20	3.2	10000 10000 15000 15000 15000 15000
40	50 80 100 120 160	130 196 252 279 279	382 493 540 586 615	186 270 353 429 429	652 931 1026 1121 1121	4000	3000	≤20 ≤20 ≤20 ≤20 ≤20	5.0	10000 15000 15000 15000 15000
50*	50 80 100 120 160	233 353 446 503 503	679 894 931 1026 1121	333 493 633 772 801	1358 1767 1957 1957 2327	3000	2500	≤20 ≤10 ≤10 ≤10 ≤10	9.0	10000 15000 15000 15000 15000
58*	80 100 120 160	522 661 708 708	1406 1511 1634 1748	732 1007 1131 1150	2328 3021 3164 3259	3000	2200	≤10 ≤10 ≤10 ≤10	14.8	15000 15000 15000 15000
