KMF Frameless Direct Drive Torque Motor

Ref: KMF

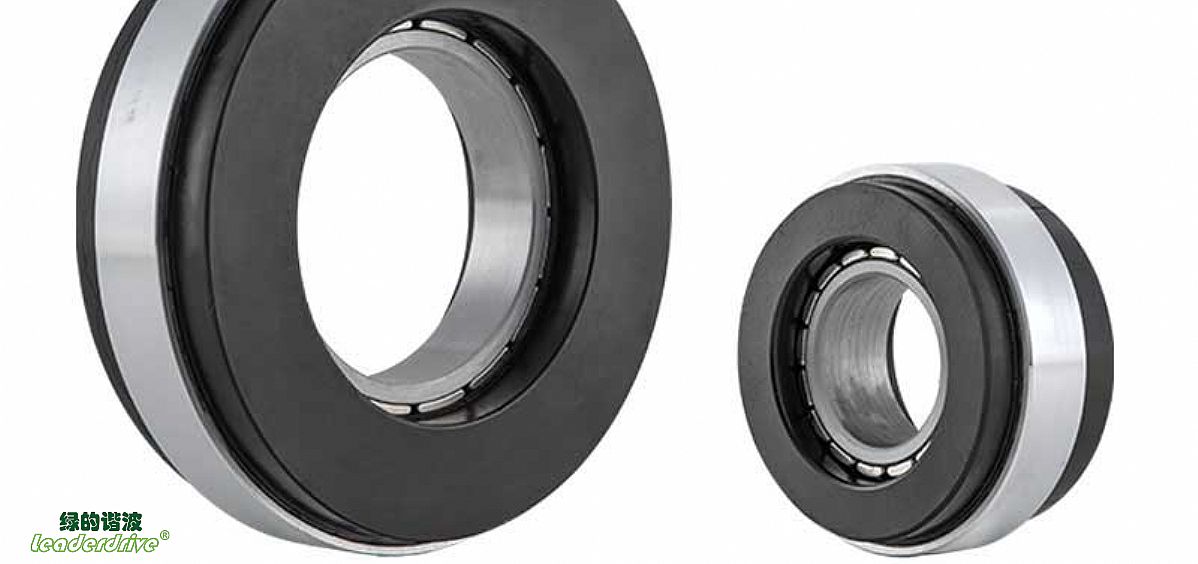

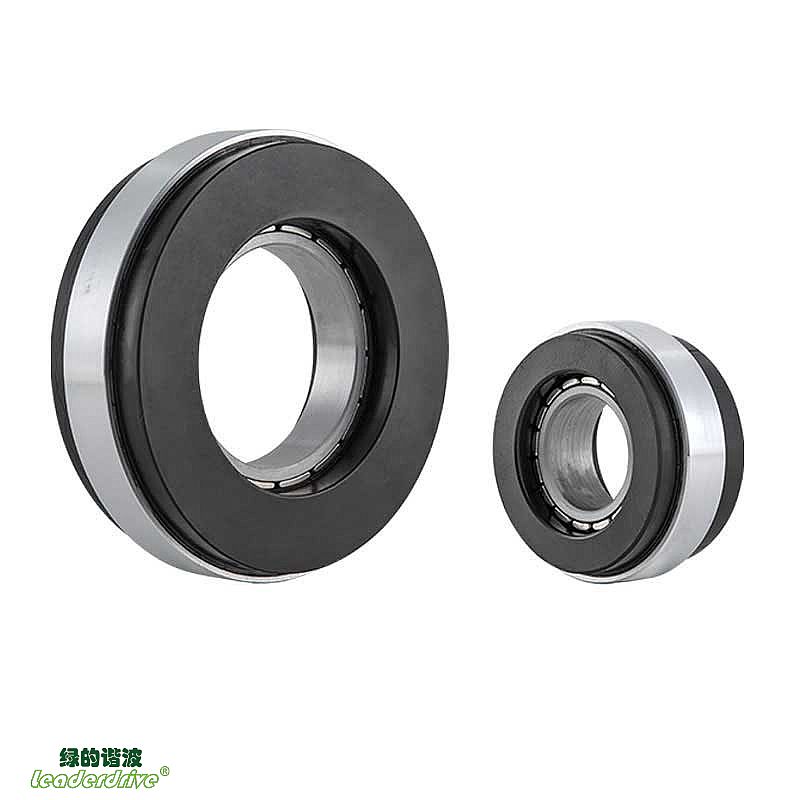

KMF high-torque frameless direct drive motors have high torque output and torque density. They also have ultra-low cogging torque, extremely low torque fluctuation at low speed, low noise, and precise rotation movement for efficient and stable solutions required by the mechanical system.

The KMF high-torque frameless direct drive motor adopts high-power-density windings for applications requiring small and compact size, low weight, and low inertia. The high-performance NdFeB rotor and carbon fiber material wrap design provide efficient and stable solutions for the system.

Leaderdrive is a recognized provider of high-precision frameless motors. We provide a range of services to ensure that our products can be applied in any situation. Contact us to discuss frameless motors with custom specifications or to request detailed performance data.

Applications:

KMF high-torque frameless direct drive motors are widely used in robotics, electronics and semiconductor equipment, 3C equipment, precision pan/tilt, precision laser processing equipment, optical inspection, aerospace equipment, etc.

Models:

Choose from a variety of models, covering a variety of frame sizes of 50-145mm, compatible with different voltage specifications such as 220v and 48v.

Optional built-in Hall sensor to provide feedback signal output.

Standard F-class insulation provides higher temperature operation.

Aerospace-grade carbon fiber protects the rotor when running at high speed.

If you want to know more about our products, you can download our Product Introduction Manual and 3D Model here.

The Specifications of KMF Series Frameless Torque Motors
Designed voltage		DC bus voltage 48VDC								220VAC
Model KMF-		060AL	060BL	076AL	076BL	095AL	095BL	129AL	145AL	060AM	060BM	076AM	076BM	095AM	095BM	129AM	145AM
Rated power	W	130	160	290	350	500	560	600	750	130	160	290	350	500	550	600	750
Speed at rated power	RPM	4200	2800	3900	2200	2600	1800	2400	1700	4500	3100	4200	2500	2900	1800	2800	2100
Continuous stall torque	N m	0.459	0.774	1.032	1.82	2.33	3.98	3.343	4.479	0.459	0.774	1.032	1.82	2.33	3.903	3.343	4.479
Continuous current	Arms	5.06	6.2	8.96	9.87	14.8	16.31	18.96	23.71	1.69	2.07	2.99	3.29	4.93	5.153	6.32	7.9
Peak stall torque	N m	1.56	2.63	3.1	5.46	6.06	9.57	8.36	11.65	1.61	2.71	3.3	5.82	6.99	11.71	10.03	13.44
Peak current	Arms	16.7	19.85	30.27	33.18	44.4	47.61	48.3	54.62	5.92	7.25	9.57	10.53	14.79	15.46	18.96	23.7
Torque constant	N m/Arms	0.091	0.152	0.109	0.184	0.141	0.218	0.176	0.232	0.392	0.354	0.504	0.491	0.794	0.734	0.898	0.892
Back EMF	Vrms/kRPM	6.32	10.03	7.98	12.06	10.57	14.69	12.05	17.48	23.85	37.81	30.66	45.46	40.84	53.52	44.29	50.87
Phase resistance	Ohms	0.275	0.204	0.262	0.196	0.239	0.179	0.188	0.139	4.311	3.233	2.135	1.601	1.779	1.267	1.438	1.024
Phase inductance	mH	0.352	0.275	0.313	0.244	0.282	0.219	0.265	0.207	5.256	3.942	3.869	2.902	3.375	2.495	3.165	3.026
Cogging torque	N m	0.0012	0.0021	0.0034	0.0055	0.0088	0.0092	0.0094	0.0099	0.001	0.0021	0.0027	0.0055	0.0097	0.0098	0.0094	0.0097
Inertia moment	x10-4 kg m2	0.15	0.26	0.32	0.58	1.14	1.93	1.78	2.32	0.15	0.26	0.32	0.58	1.14	1.96	1.78	2.32
Mass	kg	0.155	0.289	0.302	0.553	0.578	1.035	1.123	1.612	0.155	0.289	0.302	0.553	0.578	1.024	1.123	1.612
Number of motor poles		16
Motor insulation		Heat-resistant class: F (155 ℃)
		Insulation resistance: more than 200MΩ (DC500V)
		Dielectric strength: AC1500V (1 minute)
