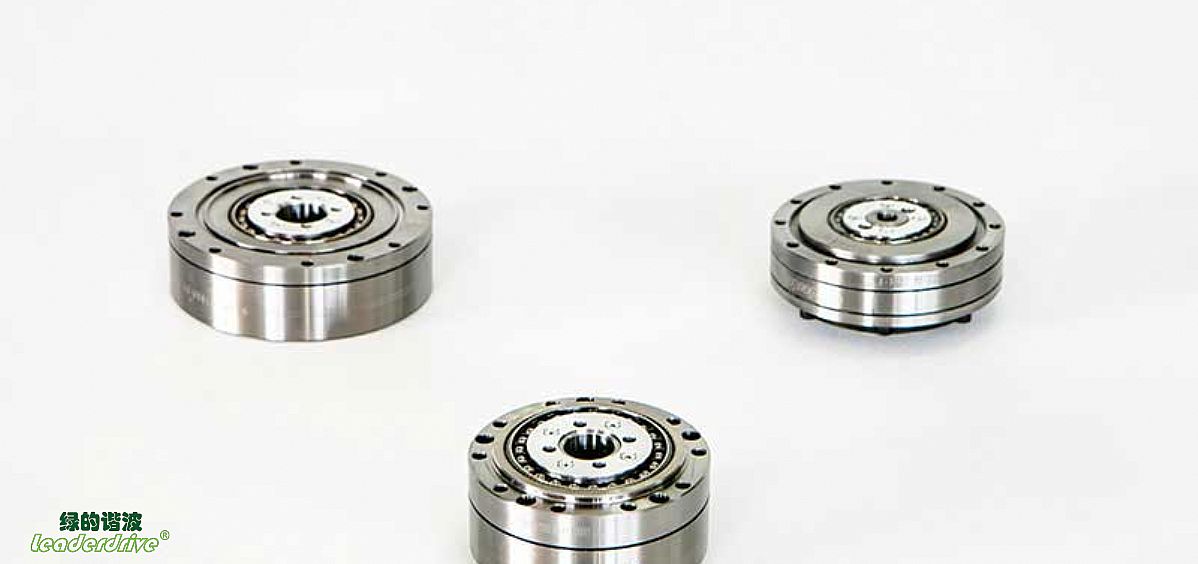

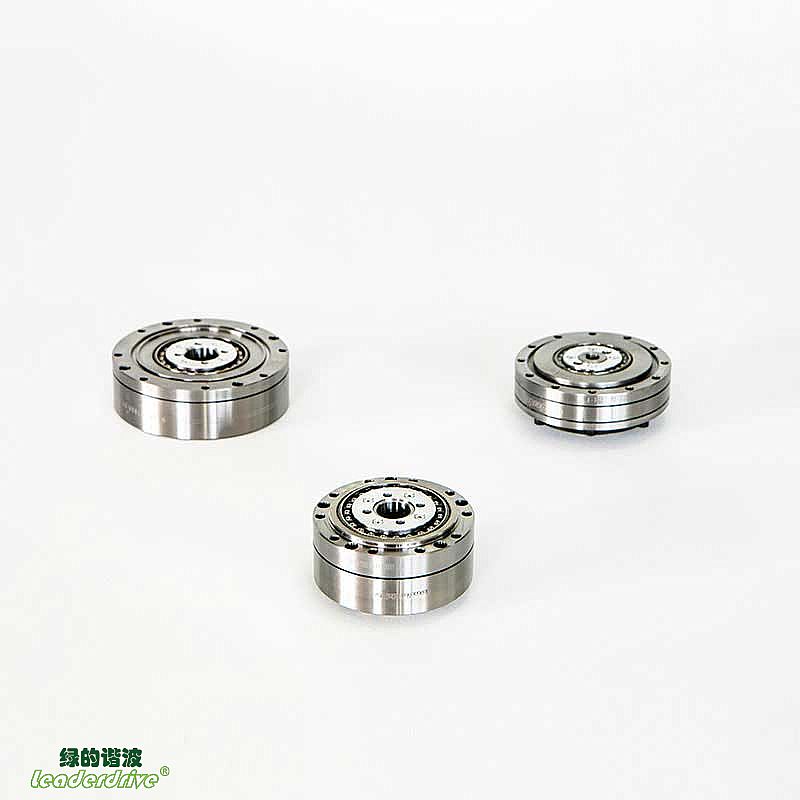

The flexspline of the LCD strain wave gear is an ultra-thin cup-shaped design. The whole machine adopts an ultra-flat structure, which is very suitable for use in robot end joints where a harmonic speed-reducing effect is required.
The LCD ultra-flat cup-shaped flexspline strain wave gear has an ultra-flat lightweight structure, small size, high rigidity, and low backlash.
Leaderdrive ultra-flat strain wave gears are available in gear and component set forms. Contact our technical team with your specific needs to receive the best solution. Contact Us
The LCD ultra-flat cup-shaped flexspline strain wave gear can be widely used in: robots, humanoid robots, printed circuit manufacturing equipment, metal machine tools, and other fields.
Models:
The LCD ultra-flat cup-shaped flexspline strain wave gear models are based on the connection form of the input terminal and the wave generator cam. Currently, there is only the LCD-I series:
LCD-I: The input shaft is directly matched and connected with the inner hole of the wave generator.
If you want to know more about our products, you can download our Product Introduction Manual and 3D Model here.
LCD Series Parameter Table
Item
Model No
Reduction Ratio
Rated Torque at 2000r/min
Nm
Allowable Peak Torque at Start and Stop
Nm
Allowable Average Torque
Nm
Allowable Maximun Mementary Torque
Nm
Maximun Input Speed
r/min
Allowable Average Input Speed
r/min
Back Lash
Arc sec
Weight
Kg
Design Life
Hour
14
50 80 100
3.5 5.1 5.1
11.4 15 18
4.6 6.2 7.3
23 29 33
8000
3500
≤20 ≤20 ≤20
0.56
9000 10000 10000
17
50 80 100
10.4 14 15
22 29 35
17 21 26
46 54 67
7000
3500
≤20 ≤20 ≤20
0.48
9000 10000 10000
20
50 80 100
16 23 27
37 49 54
23 28 32
66 78 90
6000
3500
≤20 ≤20 ≤20
0.68
9000 10000 10000
25
50 80 100 120
26 42 45 45
66 91 104 111
36 62 71 71
121 157 175 187
5500
3500
≤20 ≤20 ≤20 ≤20
1.3
9000 10000 10000 10000
32
50 80 100 120
50 79 91 91
143 202 221 235
71 126 144 144
255 350 399 423
4500
3500
≤20 ≤20 ≤20 ≤20
2.5
9000 10000 10000 10000
40*
50 100 160
91 176 196
267 378 430
130 247 300
456 665 727
4000
3000
≤20 ≤20 ≤20
3.8
9000 10000 10000
*Consult factory
