"2017 Japan International Robot Exhibition" (iREX 2017) will be held from November 29th to December 2nd, 2017 at Tokyo Big Sight.
iREX is Japan's largest professional robotics exhibition and one of the world's four largest robotics exhibitions, held every two years. At iREX 2015, 682 exhibitors from all over the world showcased world-class robotic products and application technologies, attracting 121,422 professional visitors. iREX 2017 is divided into industrial robots, service robots, robot supporting parts, machine vision, robot integrated application display, technology research and development and other exhibition areas. Professional forums and conferences will also be held in the same period, which is an important exchange platform for companies to explore the Japanese market and learn the world's advanced technologies.
In order to promote the expansion of overseas markets, Leaderdrive, a domestic first-class reducer manufacturer, was invited to participate in iREX 2017. Leaderdrive joins Jiangsu Kaixuan to participate in the exhibition. What surprises will it bring? First look at this wave of spoilers!
iREX 2017
Time: November 29th-December 2nd, 2017
Venue: Tokyo Big Sight (Tokyo Big Sight)
Booth number: IR1-04
Reducer products

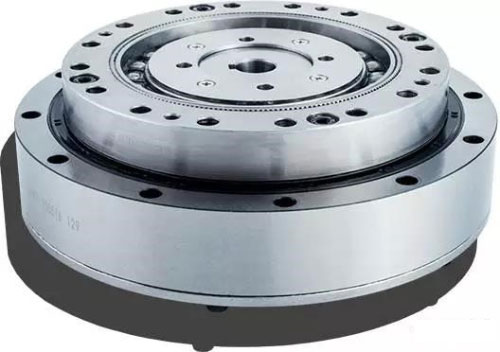

1. LHS-I/LHSG-I series harmonic reducer
LHS-I/LHSG-I series harmonic reducer LHS-I/LHSG-I series flex spline is a hollow flanged standard barrel structure, the whole machine is compact in structure, the input shaft is directly matched with the inner hole of the wave generator, through a flat key connection. It can be used in connection with rigid wheel end fixed and flexible wheel end output; it can also be used in flexible wheel end fixed and rigid wheel end output green.
The LHSG-I series is a high-torque model with the same structure, connection mode, input and output mode as the LHS-I series reducer, but the torque carrying capacity is 30% higher than that of the LHS series.

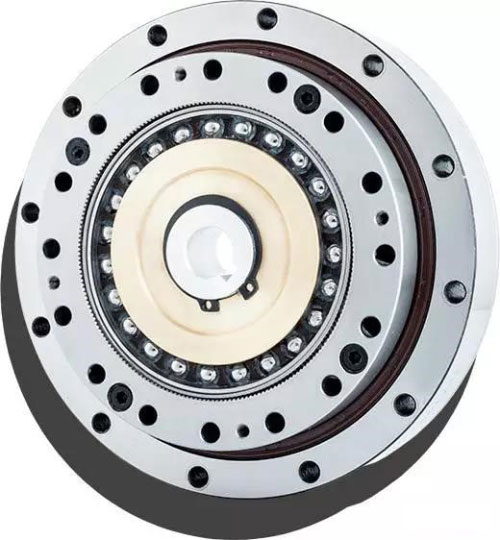

2. LHS-II/LHSG-II series harmonic reducer
The LHS-II/LHSG-II series flex spline is a hollow-flanged standard tube structure, and the whole machine has a compact structure. The input shaft is connected to the inner hole of the wave generator through a cross slider coupling. It can be used in the connection mode of rigid wheel end fixed and flexible wheel end output; it can also be used in the connection mode of flexible wheel end fixed and rigid wheel end output.
The LHSG-II series is a high-torque model with the same structure, connection mode, input and output mode as the LHS-I series reducer, but the torque carrying capacity is 30% higher than that of the LHS series.

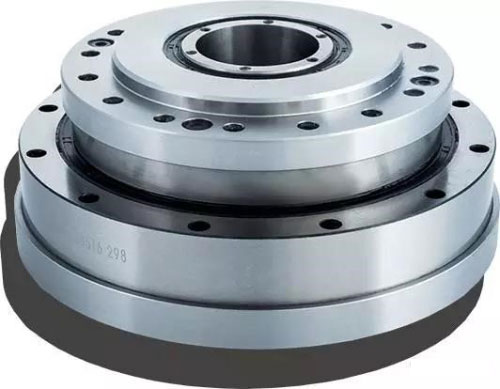

3. LHS-III/LHSG-III series harmonic reducer
The LHS-III series flex spline is a hollow flanged standard cylinder structure. There is a large-diameter hollow shaft hole in the middle of the wave generator cam. The reducer is designed with a supporting bearing inside. The fully sealed structure is easy to install and is very suitable for the center use when threading. The LHSG-III series is a high-torque model with the same structure, link mode, input and output mode as the LHS-III series reducer, but the torque carrying capacity is 30% higher than that of the LHS series.

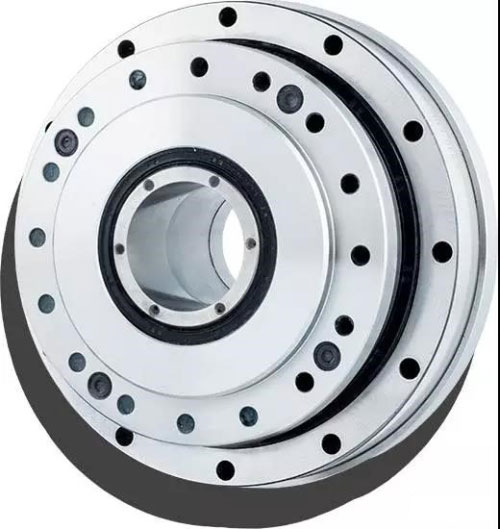

4. LHS-CL-III/LHSG-CL-III series lightweight harmonic reducer
This series is based on the LHS-III/LHSG-III series harmonic reducer. Through the optimization of structure and materials, the weight of the harmonic reducer is greatly reduced while maintaining the original performance parameters. It can withstand faster speeds and larger loads after being used on industrial robots.
5. LHS-IV/LHSG-IV series harmonic reducer
The LHS-IV/LHSG-IV series flex spline is a hollow-flanged standard barrel structure. The wave generator cam has its own input shaft. The reducer is designed with a supporting bearing. The fully sealed structure is easy to install. It is very suitable for the input It is used when installing bevel gear or synchronous belt transmission. The LHSG-IV series is a high-torque model with the same structure, link mode, input and output mode as the LHS-IV series reducer, but the torque carrying capacity is 30% higher than that of the LHS series.

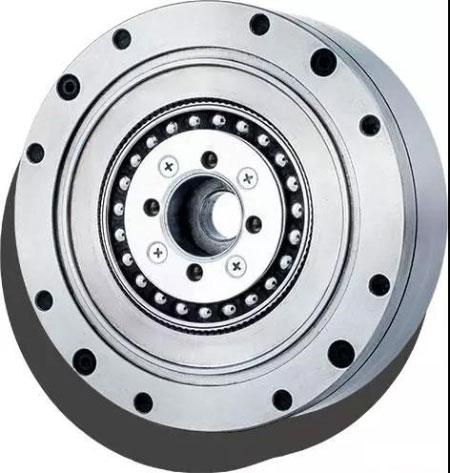

6. LCD series harmonic reducer
The flex spline of the LCD series has an ultra-thin cup-shaped structure. The whole machine is designed with an ultra-flat structure, small in size and light in weight. It is very suitable for use as a robot end joint and a reducer for the client.
Servo Products

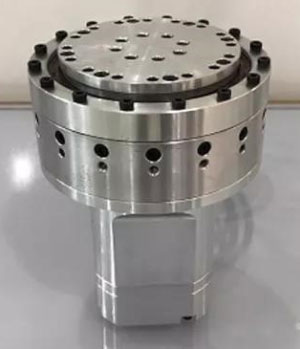

KXC Cyclone Series Intelligent Servo Drive
■Integrate high-precision harmonic reducer, flat structure AC servo motor, ultra-thin high-resolution absolute encoder and smart sensor in one.
■High precision, small size, light weight and large output torque.
■Small vibration, low noise and long life.
■The output torque is optional from 20N•m to 1000N•m.
■Can be customized according to customer needs.
■Convenient installation and maintenance.

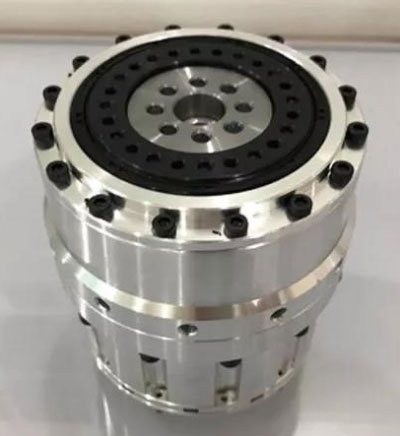

KXH Hurricane Series Intelligent Servo Drive
■Integrate hollow harmonic reducer, flat hollow AC servo motor, ultra-thin absolute encoder and smart sensor, and the hollow structure can be threaded.
■High precision, small size, light weight and large output torque.
■Small vibration, low noise and long life.
■Support DC24V, DC48V or AC220V power supply.
■The output torque is optional from 20N•m to 1000N•m.
■Can be customized according to customer needs.
■Convenient installation and maintenance.

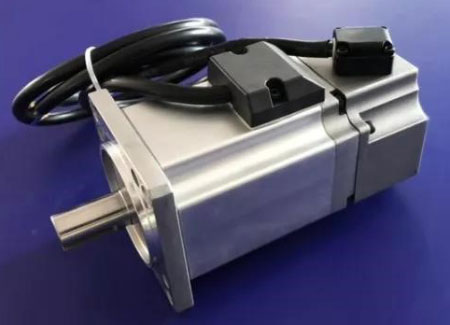

KXSF series AC permanent magnet synchronous motor
■Small size, high power density, low temperature rise.
■Low cogging, low harmonics, stable operation.
■Small vibration, low noise and long life.
■High-performance NdFeB magnet.
■TÜV certification, CE certification
■Customized according to customer needs.
KXSF-P series direct drive torque motor
■Small size, light weight, low inertia and high power density.
■Low cogging torque, low vibration, low noise and long life.
■Various frame sizes, flexible choice between outer diameter 60mm~130mm and length 20~55mm.
■Stainless steel rotor anti-corrosion treatment.
■Customized according to customer needs.
KXSD series bus type servo driver
■Full closed loop control, high-speed response, high-precision positioning.
■Real-time Ethernet EtherCAT protocol communication
■Chattering suppression, inertia recognition.
■Online parameter self-correction.
Professional high-performance industrial transmission and servo drive system solutions
1. KXC Cyclone series intelligent servo transmission device
High precision, small size, high transmission efficiency and large output torque.
2. KXH Hurricane series intelligent servo transmission device
Hollow structure, high precision, small size, light weight and large output torque.
3. KXSF series AC permanent magnet synchronous motor
Small size, high power density, low temperature rise, low cogging, low harmonics, and stable operation.
4. KXSF-P series direct drive torque motor
Small size, light weight, low inertia, high power density, low cogging torque.
5. KXSD series bus type servo driver
Fully closed-loop control, high-speed response, high-precision positioning, EtherCAT communication, chattering suppression, inertia recognition.
